Condensor

Single wall multi fuel flue pipe

Condensor  is a fully seam welded  316L stainless steel single wall pipe.

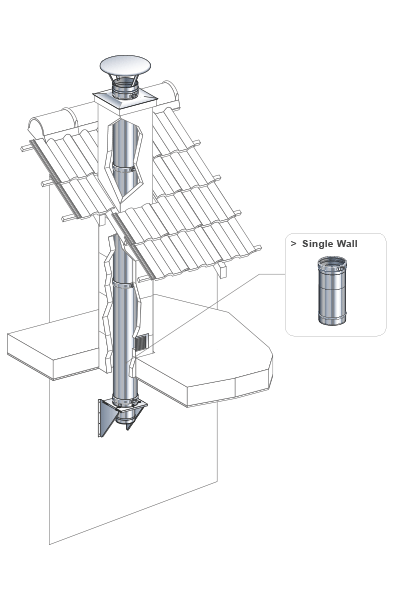

It can be used as a liner to an existing brick stack and / or a connecting flue pipe for solid fuel appliances and as a chimney system for gas & oil appliances.

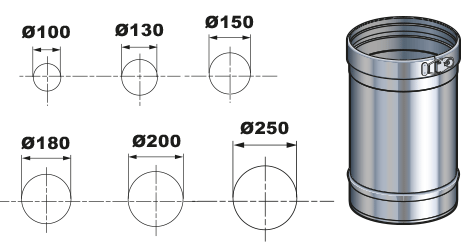

It is available in 9 diameters (ø80, ø100, ø130, ø140, ø150, ø180, ø200, ø230 & ø250).



CE              Ceric Label









Product details

> The Poujoulat cone to cone patented joint gives 50 mm overlapping connection, giving excellent joint stability and performance.

> Every component is supplied with a Locking band and a safetey ring to guarantee security.

> Quick and easy to install

> Wide range of accessories i.e. terminals, register plate, adjustable elbows, brackets & supports



All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards.



Poujoulat-produit Poujoulat-produit-mobile

Technical data

ADAPTOR TO ENAMEL PREMIUM & STARTINOX

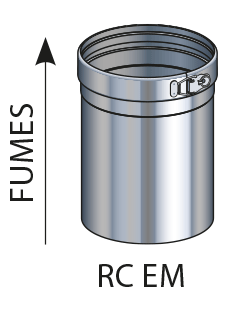

> The RC EM Adaptor provides a perfect connection between the single wall chimney and the Enamel Premium & Startinox connecting flue pipe.

> The extended 175 mm long spigot on the RC EM  Adaptor when used with the Poujoulat register plate provides up to 100 mm pipe adjustment making the installation of the stove easier.

Documentations



DOWNLOADS
ENAMEL PREMIUM
CONDENSOR (BOOKLET)
Download PDF
CONDENSOR
SINGLE WALL (INSTALLATION INSTRUCTIONS)
Download PDF
